What We Offer?

Comprehensive Technical Services for Oil & Gas Optimization

Integrated Solutions Backed by Expertise and Advanced Technology

Value-Driven Technical Services

We provide integrated technical solutions that enhance exploration, production, and operational efficiency through expert knowledge, advanced technology, and strategic planning.

Our expertise in reservoir management includes seismic interpretation, dynamic modeling, and EOR feasibility studies, ensuring optimized recovery and resource management. Utilizing cutting-edge software and AI-driven analytics, we conduct detailed asset evaluations, production system optimization, and benchmarking, maximizing asset performance.

Additionally, our hands-on training programs equip professionals with industry-leading skills for real-world applications, fostering continuous learning and innovation in oil & gas operations.

Sustainable Energy for a Cleaner Tomorrow

Pioneering Innovation in Oil & Gas for a Greener Future

Excellent

4.7

Client Ratings

Technical services that add value through

Our technical services provide specialized expertise, advanced tools, and integrated solutions to enhance exploration, production, and reservoir management. By leveraging cutting-edge technology, industry knowledge, and operational excellence, we deliver value-driven results that maximize efficiency and sustainability in oil & gas operations.

Integrated solutions performed with specialized technical support from highly qualified professionals, under effective management of talent, knowledge and experience from having worked in a wide range of types of reservoirs, wells and oil fields.

Knowledge and competence in processes for defining exploration, exploitation and production operation plans

Experience in the life cycle from the design to the execution of integral projects, and from the reservoir to the surface installations.

Reservoir Management

Maximizing Reservoir Potential Through Strategic Optimization

Knowledge and competence in processes for defining exploration, exploitation and production operation plans.

Field project types: Integrated Reservoir Studies, production optimization, planning and design of drilling and completion of wells, etc.

Analysis in the field of exploration and re-exploration, geology and geophysics.

Automated seismic interpretation.

Dynamic Modeling (Numerical Simulation), secondary recovery and feasibility studies for the application of EOR methods.

Evaluation of production systems and optimization.

Technical training.

Software Management

Advanced Software Solutions for Precision and Efficiency

Industry-leading software for reservoir analysis, production optimization, and asset benchmarking.

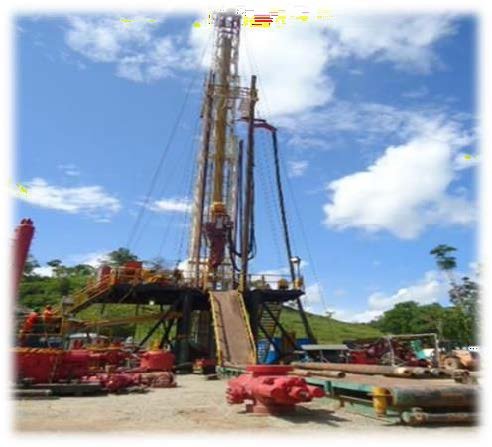

DRILLING RIG

750 HP In Colombia

Technical Overview

Rig Type:

Self Proprelled Drilling Rig

Manufacturer:

INGERSOLL RAND

Drawwork Rated (HP):

750 HP

Nominal Drilling Depth:

8,000 Ft with 4 1/2'' DP

Static Hook Load :

350,000 lbs with eight lines

Capacity

Mud Capacity: 1000 Bbl Drilling Water Capacity: 723 Bbl Fuel Capacity: 643 Bbl (27024 Gl)

Max. Weight of load for move:

23 ton

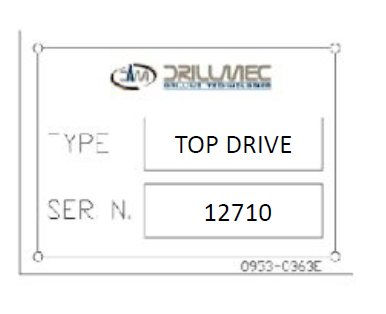

TOP DRIVE SPECIFICATIONS

MODEL: HTD 220
LOAD CAPACITIES
MAXIMUM STATIC LOAD CAPACITY: 200.000 kg
MAXIMUM DYNAMIC LOAD CAPACITY AT 100 RPM: 115.000 kg
MAXIMUM PASSAGE DIAMETER: 76 mm
MAXIMUM WORKING PRESSURE: 350 bars
LOWER THREAD: NC 50 API – 4½” IF
MAX TORQUE: 3525 daNm
MAX SPEED: 200 RPM
TOP DRIVE POWER OUTPUT: 295 kw
DOUBLE HOOK CAPACITY: 200.000 kg
ELEVATOR LINK CAPACITY: 226800 kg (250 Short ton.)
LENGHT: 108” (2743 mm)
LINK SIZE: 2.¼”x108”
WEIGHT: 6500 kg approx.
PIPE HANDLER – COUNTERBALANCE SYSTEM

(UTILITY REQUIREMENTS RIG AIR SUPPLY): 8 bar

TORQUE WRENCH:
The TORQUE WRENCH can handle pipe from 4” to 6.5/8” OD
MAXIMUM MAKE-UP TORQUE: 4400 daNm
MAXIMUM BREAK-OUT TORQUE: 5925 daNm

Success Stories

Proven Results in Oil & Gas Optimization and Innovation

Real-world solutions delivering measurable success in oil & gas exploration, production, and reservoir management.

Mexico: Reservoir Characterization Using Emerging Techniques

Advanced techniques were applied to obtain a precise and detailed understanding of the reservoir’s behavior, optimizing the exploitation strategy.

In Campo Cinco Presidentes, we implemented emerging reservoir characterization techniques to enhance the understanding of subsurface formations. This allowed for a more accurate assessment of reservoir behavior, enabling the development of optimized exploitation strategies that maximize production and recovery.

United States – Texas: Advanced Analysis of Reservoir Deposits

A detailed study of sandstone and limestone deposits in Texas was conducted using advanced methodologies to optimize structural analysis.

In North Nocona Field, Montague County, our team performed an in-depth study of Pennsylvanian sandstone and limestone formations. Using cutting-edge characterization techniques, we improved the understanding of reservoir structures and behavior, leading to enhanced resource management and extraction strategie

Guatemala: In-Depth Analysis of the Petén Basin

A comprehensive reservoir study in Guatemala’s Petén Basin used advanced technology to enhance geological understanding and optimize production.

In Cuenca del Petén del Norte, Bloque, we conducted a thorough reservoir characterization study using the latest geotechnical technologies. This enabled a deeper understanding of geological formations and facilitated the implementation of more efficient production strategies, improving reservoir management and hydrocarbon recovery.

United States – Louisiana: Advanced Characterization of Cretaceous Limestone

Cutting-edge characterization techniques were applied to improve the performance of limestone reservoirs in Louisiana.

In Michell Williams & Billy Young, Cretaceous Limestone of Fredricksburg, we utilized advanced characterization methodologies to refine reservoir evaluation and enhance production performance. This approach optimized the exploitation of limestone formations, ensuring higher efficiency and sustainability in hydrocarbon recovery.

Global Presence, Local Expertise

Strategically positioned to deliver tailored Oil & Gas solutions across key energy markets.
